VulkanEngine::UniformBuffer< T > Class Template Reference

#include <UniformBuffer.h>

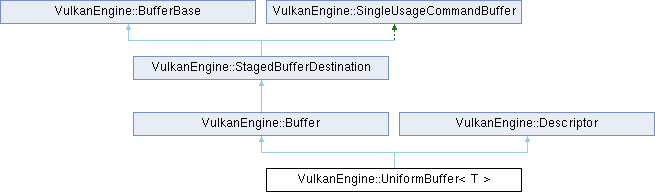

Inheritance diagram for VulkanEngine::UniformBuffer< T >:

Public Member Functions
	UniformBuffer (uint32_t _binding, uint32_t _array_size=1, vk::ShaderStageFlags _vk_shader_stage_flags=vk::ShaderStageFlagBits::eAllGraphics)
virtual	~UniformBuffer ()
	Destructor.
virtual void	appendVkDescriptorSets (std::shared_ptr< std::vector< vk::WriteDescriptorSet > > write_descriptor_sets, std::shared_ptr< std::vector< vk::CopyDescriptorSet > > copy_descriptor_sets, const vk::DescriptorSet &destination_set)
Public Member Functions inherited from VulkanEngine::Buffer
	Buffer (size_t _data_size, vk::BufferUsageFlags usage_flags, vk::MemoryPropertyFlags memory_property_flags, VmaMemoryUsage vma_memory_usage)
	~Buffer ()
	Destructor.
const vk::Buffer	getVkBuffer () const
virtual void	insertTransferCommand (const vk::CommandBuffer &command_buffer, const vk::Buffer &source_buffer)
virtual size_t	getStagingBufferSize () const
Public Member Functions inherited from VulkanEngine::BufferBase
virtual void	updateBuffer (const void *_data, size_t _data_size)
Public Member Functions inherited from VulkanEngine::Descriptor
	Descriptor (uint32_t _binding, uint32_t _desciptor_count, vk::DescriptorType _vk_descriptor_type, vk::ShaderStageFlags _vk_shader_stage_flags)
	Constructor.
	~Descriptor ()
	Destructor.
const vk::DescriptorSetLayoutBinding	getVkDescriptorSetLayoutBinding () const
const vk::DescriptorPoolSize	getVkDescriptorPoolSize () const
virtual void	appendVkDescriptorSets (std::shared_ptr< std::vector< vk::WriteDescriptorSet > > write_descriptor_sets, std::shared_ptr< std::vector< vk::CopyDescriptorSet > > copy_descriptor_sets, const vk::DescriptorSet &destination_set)=0

Additional Inherited Members
Protected Member Functions inherited from VulkanEngine::SingleUsageCommandBuffer
void	beginSingleUsageCommandBuffer ()
	Creates and starts recording the command buffer.
void	endSingleUsageCommandBuffer ()
	Stops recording and submits the command buffer.
Protected Attributes inherited from VulkanEngine::Buffer
size_t	data_size
	The size of the data.
Protected Attributes inherited from VulkanEngine::BufferBase
VmaAllocation	vma_allocation
Protected Attributes inherited from VulkanEngine::SingleUsageCommandBuffer
vk::CommandBuffer	single_use_command_buffer
	The single use command buffer.
Protected Attributes inherited from VulkanEngine::Descriptor
uint32_t	binding
	The binding index.
uint32_t	descriptor_count
	The number of descriptors represented.
vk::DescriptorType	vk_descriptor_type
	The type of descriptor represented.
vk::ShaderStageFlags	vk_shader_stage_flags

Detailed Description

template<typename T>
class VulkanEngine::UniformBuffer< T >

Represents a uniform buffer.

Template Parameters

The	data type this UniformBuffer represents.

Constructor & Destructor Documentation

UniformBuffer()

template<typename T >

VulkanEngine::UniformBuffer< T >::UniformBuffer	(	uint32_t	_binding,
		uint32_t	_array_size = 1,
		vk::ShaderStageFlags	_vk_shader_stage_flags = vk::ShaderStageFlagBits::eAllGraphics
	)

Constructor.

Parameters

_binding	The binding index.
_array_size	For arrays, specify the array size.
_vk_shader_stage_flags	Specify which shader stages will access the buffer.

Member Function Documentation

appendVkDescriptorSets()

template<typename T >

void VulkanEngine::UniformBuffer< T >::appendVkDescriptorSets ( std::shared_ptr< std::vector< vk::WriteDescriptorSet > >  write_descriptor_sets, std::shared_ptr< std::vector< vk::CopyDescriptorSet > >  copy_descriptor_sets, const vk::DescriptorSet &  destination_set  )

virtual

Appends any write descriptor sets or copy descriptor sets which belong to this Descriptor to the given vectors.

Parameters

[out]	write_descriptor_sets	Any vk::WriteDescriptorSets of the descriptor should be appended to this vector.
[out]	copy_descriptor_sets	Any vk::CopyDescriptorSets of the descriptor should be appended to this vector.
	destination_set	The destination descriptor set of the write and copy descriptor sets.

Implements VulkanEngine::Descriptor.

---

The documentation for this class was generated from the following files:

• include/VulkanEngine/UniformBuffer.h
• src/UniformBuffer.cpp
