VulkanEngine::Image< format, image_type, tiling, sample_count_flags > Class Template Reference

#include <Image.h>

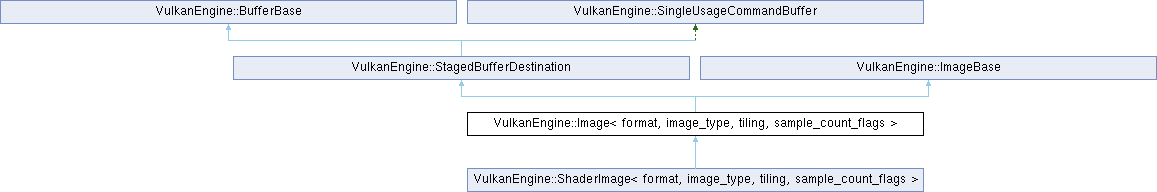

Inheritance diagram for VulkanEngine::Image< format, image_type, tiling, sample_count_flags >:

Public Member Functions
	Image (vk::ImageLayout initial_layout, vk::ImageUsageFlags usage_flags, VmaMemoryUsage vma_memory_usage, uint32_t _width, uint32_t _height, uint32_t _depth, size_t pixel_size, bool generate_mip_maps)
virtual	~Image ()
	Destructor.
void	setImageData (const void *data)
void	createImageView (vk::ImageViewType image_view_type, vk::ImageAspectFlags image_aspect_flags)
void	transitionImageLayout (vk::ImageLayout new_layout, const vk::CommandBuffer &command_buffer=nullptr)
const vk::Format	getVkFormat () const
	Get the vk::Format of the image.
const vk::SampleCountFlagBits	getVkSampleCountFlags () const
	Get vk::SampleCountFlagBits.
virtual vk::Image	getVkImage () const
	Get the interal vulkan image.
virtual vk::ImageView	getVkImageView () const
	Get the vk::ImageView.
Public Member Functions inherited from VulkanEngine::BufferBase
virtual void	updateBuffer (const void *_data, size_t _data_size)
Public Member Functions inherited from VulkanEngine::ImageBase
	ImageBase ()
	Contructor.
virtual	~ImageBase ()
	Destructor.
virtual vk::Image	getVkImage () const =0
	Get the interal vulkan image.
virtual vk::ImageView	getVkImageView () const =0
	Get the internal vulkan image view.

Protected Member Functions
virtual void	insertTransferCommand (const vk::CommandBuffer &command_buffer, const vk::Buffer &source_buffer)
virtual size_t	getStagingBufferSize () const
Protected Member Functions inherited from VulkanEngine::SingleUsageCommandBuffer
void	beginSingleUsageCommandBuffer ()
	Creates and starts recording the command buffer.
void	endSingleUsageCommandBuffer ()
	Stops recording and submits the command buffer.

Protected Attributes
uint32_t	width
	The width of the Image.
uint32_t	height
	The height of the Image.
uint32_t	depth
	The depth of the Image.
size_t	data_size
	The total size of Image's data.
uint32_t	mipmap_levels
	The number of mipmap images to generate.
vk::ImageLayout	vk_image_layout
	The current vk::ImageLayout.
vk::Image	vk_image
	Internal vk_image.
vk::ImageView	vk_image_view
	The vk::ImageView created in createImageView().
VkImageCreateInfo	image_create_info
	VkImageCreateInfo.
Protected Attributes inherited from VulkanEngine::BufferBase
VmaAllocation	vma_allocation
Protected Attributes inherited from VulkanEngine::SingleUsageCommandBuffer
vk::CommandBuffer	single_use_command_buffer
	The single use command buffer.

Detailed Description

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>
class VulkanEngine::Image< format, image_type, tiling, sample_count_flags >

Represents an image.

Template Parameters

format	The vk::Format of the pixels in the image.
image_type	The vk::ImageType specifying the dimensions of the image.
tiling	The vk::ImageTiling option to use.
sample_count_flags	vk::SampleCountFlagBits option to use for the image.

Constructor & Destructor Documentation

Image()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::Image	(	vk::ImageLayout	initial_layout,
		vk::ImageUsageFlags	usage_flags,
		VmaMemoryUsage	vma_memory_usage,
		uint32_t	_width,
		uint32_t	_height,
		uint32_t	_depth,
		size_t	pixel_size,
		bool	generate_mip_maps
	)

Constructor.

Parameters

initial_layout	The initial vk::ImageLayout of the Image.
usage_flags	vk::ImageUsageFlags specifying how the image will be used.
vma_memory_usage	VmaMemoryUsage flags to pass to the Vulkan memory allocator library when allocating the image.
_width	The width of the image.
_height	The height of the image.
_depth	The depth of the image.
pixel_size	The data size of a single pixel in the image.

Member Function Documentation

createImageView()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

void VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::createImageView	(	vk::ImageViewType	image_view_type,
		vk::ImageAspectFlags	image_aspect_flags
	)

Create vk::ImageView.

Parameters

image_view_type	The type of image view.
image_aspect_flags	Image aspect flags.

getStagingBufferSize()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

size_t VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::getStagingBufferSize

protectedvirtual

Returns

The data size for the staging buffer.

Implements VulkanEngine::StagedBufferDestination.

getVkImage()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

vk::Image VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::getVkImage

virtual

Get the interal vulkan image.

Implements VulkanEngine::ImageBase.

getVkImageView()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

vk::ImageView VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::getVkImageView

virtual

Get the vk::ImageView.

Implements VulkanEngine::ImageBase.

insertTransferCommand()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

void VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::insertTransferCommand ( const vk::CommandBuffer &  command_buffer, const vk::Buffer &  source_buffer  )

protectedvirtual

Overridden to handle tranferring data from a StagedBuffer to this Image.

Parameters

command_buffers	The command buffer to insert the command into.
source_buffer	The source vk::Buffer in the StagedBuffer.

Implements VulkanEngine::StagedBufferDestination.

setImageData()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

void VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::setImageData

(

const void *

data

)

Sets the image data from the given pointer.

Parameters

data	Pointer to the image data.

transitionImageLayout()

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

void VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::transitionImageLayout	(	vk::ImageLayout	new_layout,
		const vk::CommandBuffer &	command_buffer = nullptr
	)

Transition the image from one vk::ImageLayout to another given by new layout by adding a vk::ImageMemoryBarrier to the command_buffer.

Parameters

new_layout	The new layout to transition to.
command_buffer	The command buffer to add the command to. One will be created and added to the graphics queue if not specified.

Member Data Documentation

vk_image_layout

template<vk::Format format, vk::ImageType image_type, vk::ImageTiling tiling, vk::SampleCountFlagBits sample_count_flags>

vk::ImageLayout VulkanEngine::Image< format, image_type, tiling, sample_count_flags >::vk_image_layout

protected

The current vk::ImageLayout.

See also

transitionImageLayout().

---

The documentation for this class was generated from the following files:

• include/VulkanEngine/Image.h
• src/Image.cpp
